Effortless Control with the Bromic On/Off Series for Connected Heaters

Easily manage your outdoor heating with the Bromic On/Off Series, compatible with Platinum and Tungsten Collection gas and electric heaters. This intuitive system allows you to turn heaters on or off at full power, simplifying operation. With options for 1, 2, and 5 channel inputs, each channel can control up to 6000W of power or up to 10 gas heaters.

Enjoy seamless control via Wi-Fi or Bluetooth using the Bromic Heating App. The upcoming 3-Phase 5 Channel model includes an expansion board for ethernet integration and supports 0-10V control for enhanced home or business automation.

Key Features

Enhance Comfort with Bromic’s Affinity Smart-Heat™ Controls

Unlock full control of your Bromic heaters with Affinity Smart-Heat™ Controls, designed to pair effortlessly via Wi-Fi, Bluetooth, or optional Ethernet with the Bromic Heating app. This advanced system puts customizable comfort at your fingertips, offering:

Wi-Fi, Bluetooth, or Ethernet connectivity

Full heat control with On/Off and dimming functionality

Multi-heater management for limitless controllers

Customizable heater grouping within zones

Timer and scheduling settings

Voice control integration with Amazon Alexa and Google Home

Multi-site management from a single app

Admin and multi-user management options

Compatibility with home automation or building management systems

Specifications

Model Smart-Heat Control On/Off 1 CH:

Part Number: BH3130051

Number of Channels: 1

Voltage-Max Capacity Per Channel: 100-127V-1kW
208-277V-6kW

Operating Temperature Range: -4 F to +86 F

Non-Operating Temperature Range: -22 F to +158 F

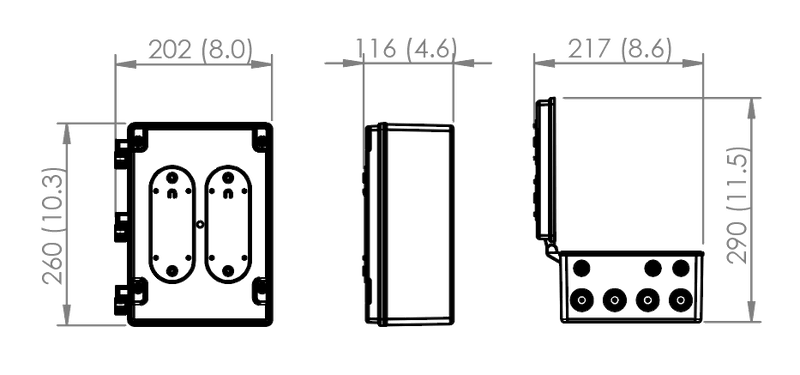

Dimensions: 11.4 x 8.0 x 4.4"

Model Smart-Heat Control On/Off 2 CH:

Part Number: BH3130052

Number of Channels: 2

Voltage-Max Capacity Per Channel: 100-127V – 1kW
208-277V – 6kW

Operating Temperature Range: -4 F to +86 F

Non-Operating Temperature Range: -22 F to +158 F

Dimensions: 11.4 x 8.0 x 4.4"

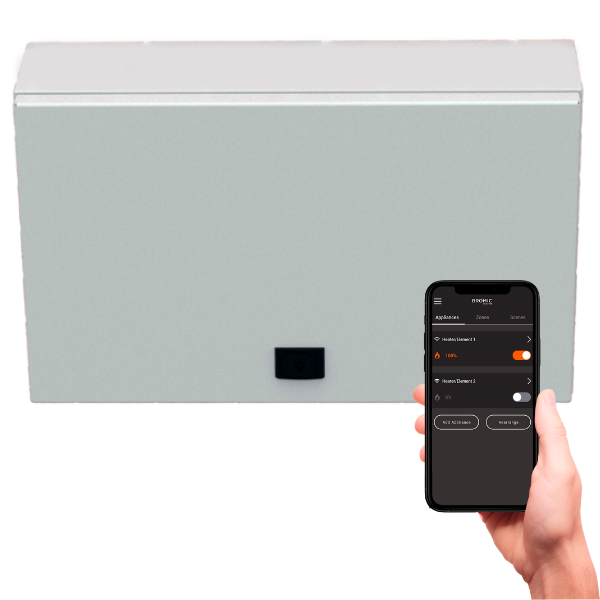

Model Smart-Heat Control On/Off 5 CH:

Number of Channels: 5

Voltage-Max Capacity Per Channel: 3N-220/380V – 6kW
3N-230/400V – 6kW
3N-240/415V – 6kW
3N-277/480V – 6kW
3- 120/208V – 6kW

Operating Temperature Range: -4°F to +86°F

Non-Operating Temperature Range: -22 F to +158 F

Dimensions: 19.7 x 13.4 x 8.0″

Heater Compatibility: Platinum Electric & Tungsten Electric
